Lamtec

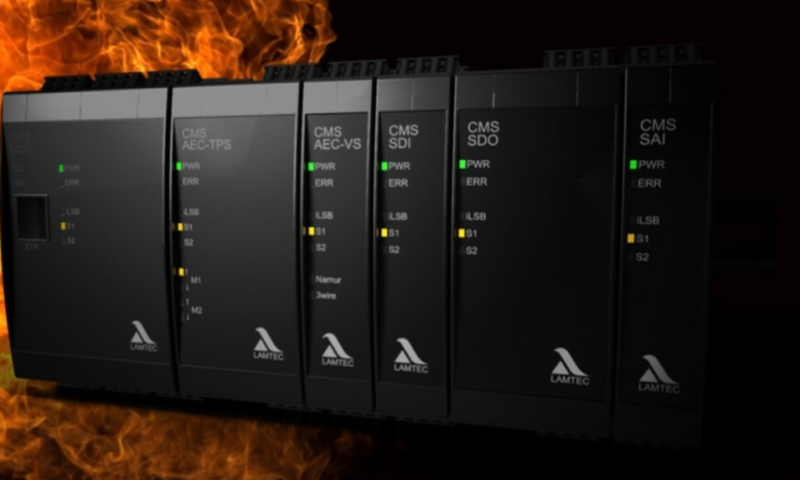

CMS

FLexibel-Modulair

  • Flexible to use
  • Easy to set up
  • Versatile:
    • up to 10 control motors
    • Speed control
    • Standard 12 inputs expandable to 60 inputs
    • Standard 9 outputs, expandable to 41 outputs
  • Codesys PLC on board
  • O2 / CO control possible fail-safe
  • Brander controller FA1

ETAMATIC

  • Compact and widely applicable for standard burner systems
  • Reliable for 25 years
  • Will be followed up by the CMS
  • This unit will no longer be supplied for new installations after 2025
  • 10 years of repair and / or replacement possible from 2025, then as long as spare parts are available





FMS

  • For complicated burner applications, for example with multiple fuel mixes.
  • Reliable for 25 years
  • Will be followed up by the CMS, if the mix combination is released by the TüV
  • After the CMS has the same functionality, the FMS will no longer be supplied for new installation, there isn't an  exact date for this.







Valve/Actuators

  • Control motors for different applications, from  6Nm to 180Nm
  • Ring butterfly control valve not linear. form use in Fluegas or Gas applications
  • For all LAMTEC control drives and all other applications
  • Form-fitted, available on demand
  • Gas family 1, 2 and 3  Max. temperature: 60°C
  • Fluegas to 500°C
  • Operating pressure: dependingon the diameter, 1 bis 6 bar



Flue gas measurements




  • CO/O2 control is the better alternative to the O2 control:

    • Increased savings on energy and cost
    • Better control due to short setting time
    • Failure-safe
    • High operating safety
    • Robust
    • Maintenance-free

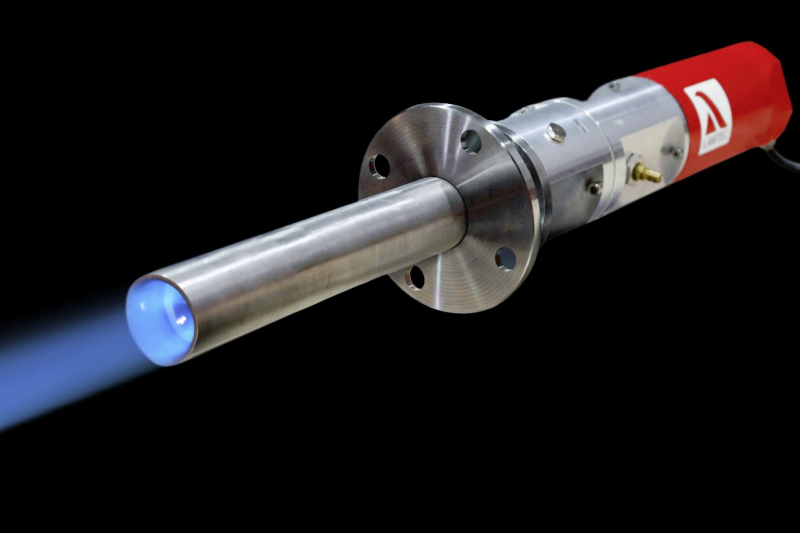

Ignition burner

  • Low loss of pressure through optimisation
  • Immediate, repeatable ignition in every firing rate
  • Highest flame stability
  • Safe flame monitoring
  • Modular design
  • SIL 3 certified
  • Intermittent or continuous operation
  • Protection class up to IP 67
  • Thermal power up to 3,000 kW
  • Flame length up to 2,500 mm
  • Pilot burner length up to 6 m
  • Fuel: natural gas, LPG (liquid propane gas), coke gas, refinery gas
  • Individually customised solutions

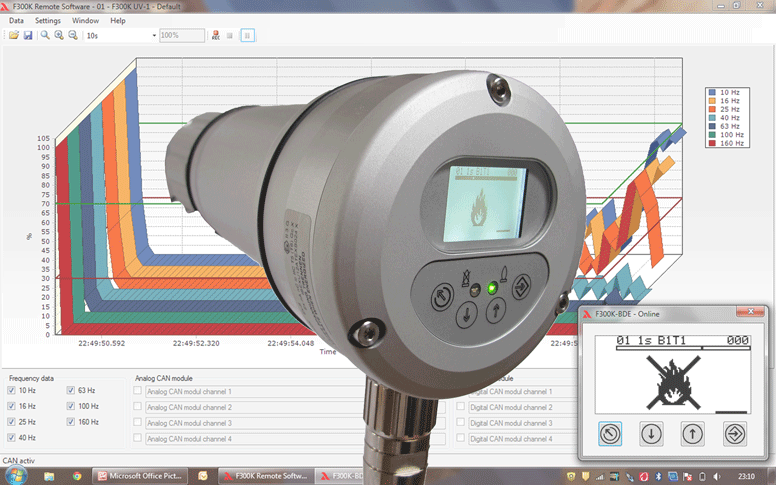

Flame scanners

  • Compact case with integrated flame sensor and switching amplifier
  • Intensity adjust in multiple steps
  • Digital circuit design for flame evaluation SIL 3
  • Status indication by LEDs 24 VDC operating voltage
  • Two electronic channel system for fail safe operation and supervision
  • LED bar flame intensity indication and 4 (0) ... 20 mA analog output
  • LED bar trend indication selectable for an optimum adjustment to the flame direction
  • Available with Class I, Division 2, Group A, B, C, D, Hazardous Locations

Mass flow measurement grid

  • Volume measurement of gaseous media in ducts, especially for comdustion air for firing applications
  • With a minimum of differential pressure loss, compared to the conventional technology
  • Short length of inlet- and outlet-stretch for laminar flow. Long air-ducts are not required anymore
  • Stainless steel material
  • Basic temperature range up to 400 °C
  • Free of maintenance for use in clean air application
  • Rectangular and circular grid versions are available
  • With increased dust particles loading, flushing back can be done (option)
  • Connection to the Differential Pressure Transmitter by impulse piping or on customer‘s request
